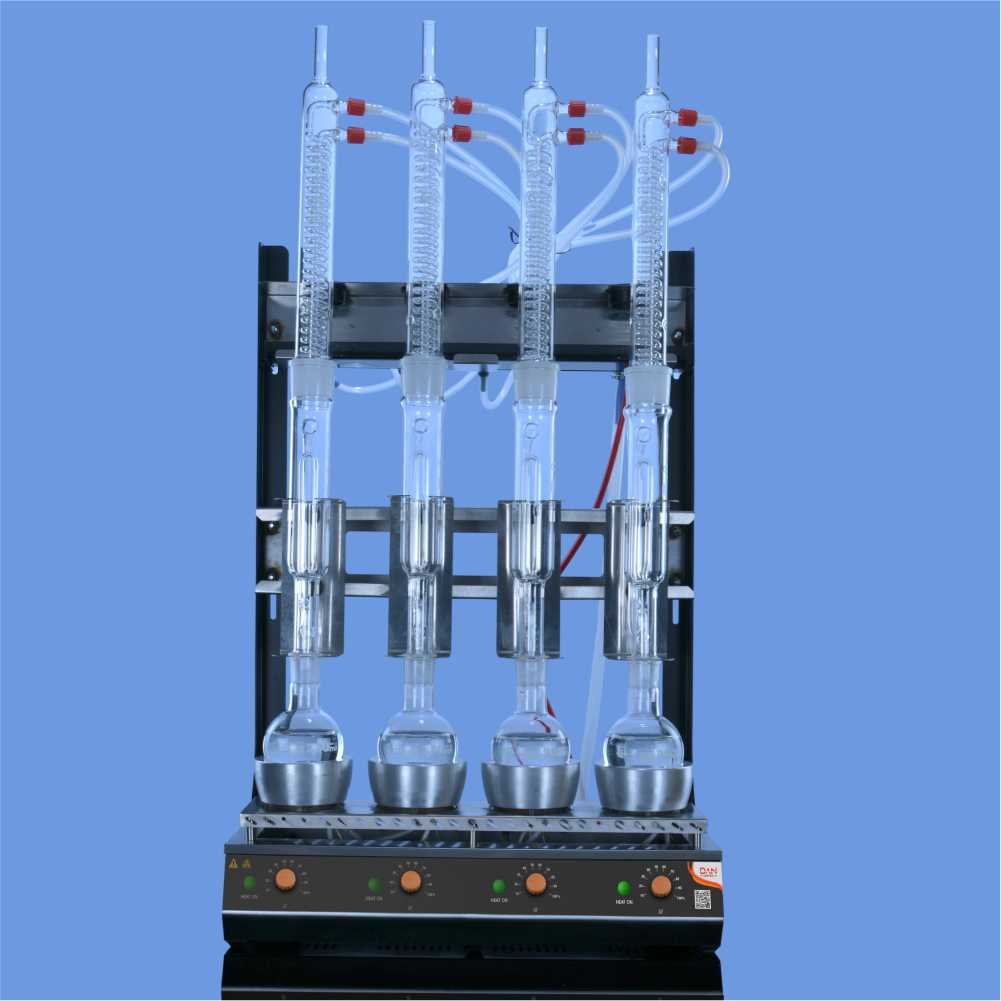

Fat extraction apparatus (Soxhlet Apparatus)
Catalog no: 1900.DNEU
SOXHLET/TWISSELMAN APPARATUS
- Cost-effective & user-friendly apparatus for fat extraction
- Individually adjustable power/energy for each sample position
- Uniform cooling water distribution
- Inbuilt condenser-ledge to safely deposit condenser between hot extractions
- C-type brackets for safely holding the intermediate extraction pieces after removing the sample container
Price: On Request Get A Call Back
- Enquire Now
- Specifications
- Download
- Additional information
| Item Code | Volts/Hz | Watts | Price | Qty / Enquiry |
|---|---|---|---|---|
| 1900.DNEU.01 | 230/50 | 1500 | On Request | |
| 1900.DNUS.01 | 115/60 | 1500 | On Request |
Description
Technical Specification:
| Voltage | : | 230/115 V |
| Frequency | : | 50/60Hz |
| Power consumption | : | ~1500W |
| Weight of body | : | approx. 15 kg |
| Position | : | 4 |
| MOC Adapters | : | Aluminum Alloy |
| Flask Capacity | : | 250ml |
| Extraction Capacity | : | 500ml |
| Condenser | : | 100ml |
| Plate/Adaptor Temp. | : | upto 400°C |
| Dimensions in mm (W x D x H)(without glass) | : | 504 x 274 x 765mm |
| IP Class | : | IP 20 |
Additional information
| PD | Item Code:1900.DNEU.01, Volts/Hz:230/50, Watts:1500, Item Code:1900.DNUS.01, Volts/Hz:115/60, Watts:1500 |
|---|
