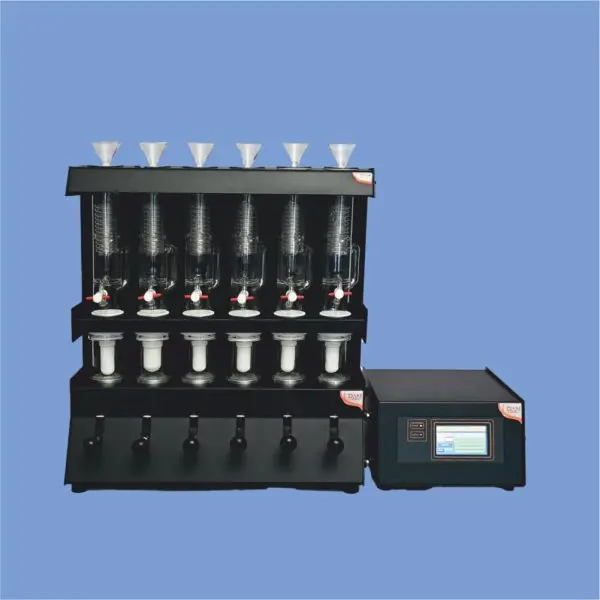

Automatic Solvent Extraction System
Catalog no.: DAN-6T-02
- Standalone housing for Temperature controller to protect electronics from solvent area & heat zone.
- PC chart software performs Live graphical representation of time/temperature gradient on PC Connectivity
- Auto Alarm for recovery phase
- Auto power off mode on completion of extraction.
- Independent loading of sample with individual mechanical controls.
- Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection.
- Cold water line for condensation of solvent with silicon hose inter connection for condenser
- Enquire Now
- Specifications
- Download
- Additional information
| Model | Price | Qty / Enquiry |
|---|---|---|
| DAN 6T 02 | On Request |
Description
Technical Specification:
| MODEL | : | DAN-6T-02 |
| Description | : | Automatic PC Compatible Auto sequencing Regular Six Place Solvent Extraction System |
| No. of Positions | : | Six Samples |
| Sample Size | : | 0.1 to 8 gms (depending on the type of sample) |
| Temperature Control Range | : | 35°C (Ambient) to 300°C |
| Digital Timer | : | Range : 0-99.59 hrs (Settable in hrs, min and seconds), Digital display of set time and actual time (1-5999 minutes) , Modes of operation: heater cut off mode & alarm mode |
| Temperature Accuracy / Precision | : | ± 0.5° C |
| Ramp & Hold | : | Integrated Auto Sequencing programs with 12 desirable sequence ramp / steps of time and temp. domain for each programme. |
| Presets | : | Select able Programs(Customizable): Integrated Auto Sequencing Features with 30 intelligent memory programs |
| Heater Source | : | Casted Aluminium Alloy Heaters |
| PID Control | : | Fuzzy logic Microprocessor based PID Controller with Auto tuning facility. |
| Temperature Setting | : | Feather touch membrane keys |
| PC & Printer Connectivity | : | Direct USB port for PC/Laptop connectivity Intelligent Software for PC compatibility for 2 way Bidirectional communication |
| Display | : | Bright Digital two line Alphanumeric LCD Digital Display of time and temperature |
| Extraction Thimbles | : | * Thick Nitrocellulose thimble (f25mm X 80mm) – 1 Box of 25 Nos. * Highly versatile to accommodate 2 sizes of Thimbles. Optional Macro Thimbles of size (33 mm dia x 80mm L) compatible in the system. |
| Power Consumption | : | 2000 Watts. |
Download
|
Additional information
| PD | Model : DAN-6T-02 |
|---|
