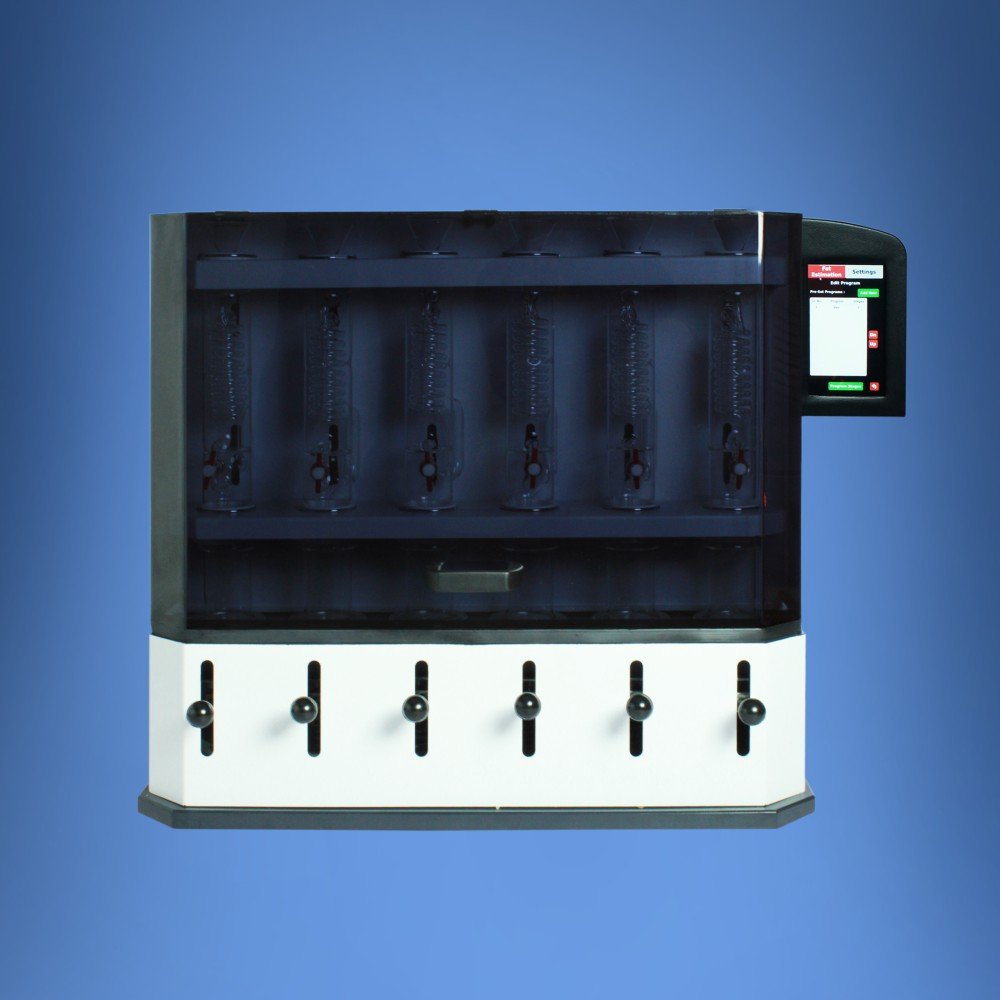

Smart Solvent Extraction System

Catalog no: DAN.FAS.01

Independent Sample Loading with individual mechanical controls for flexible and efficient operation.
7-Inch Capacitive Full-HD Touch Display featuring advanced GUI for seamless control, parameter settings, and real-time process monitoring.
Multiple Programs can be built for customized extraction methods and repeatable workflows.
Inbuilt Safety System with auto-error indication, over-temperature protection, and auto sensor-break protection.
Cold Water Condensation Line with high-quality silicon hose interconnections for efficient and stable solvent condensation.
Chemical-Resistant Tubing & Components designed for long service life even in harsh laboratory environments.
Low-Maintenance Design with easy-access service areas and tool-less removal for cleaning and tubing replacement.
Smart Error Detection including alarms for low water flow, low reagent levels, temperature faults, and system abnormalities.
Comprehensive Protection System featuring over-voltage, over-temperature, and dry-run protection for enhanced safety.
Energy-Optimized System reducing power consumption without compromising extraction performance.
Heavy-Duty Laboratory Construction suitable for routine daily nitrogen extraction and high-workload lab operations.
Compact & Modular Architecture allowing easy integration into modern laboratory setups and simplified servicing or upgrades.
Role-Based Login supporting Admin and User accounts with separate permission levels.
Secure Authentication with password-protected login for controlled system access.
Multiple Program Storage allowing users to save multiple programs internally.
USB Backup & Restore – export (download) all programs to a USB drive and import (load) programs for quick setup, sharing, or recovery.
Remote Monitoring & Control – optional Labs Connect module enables secure internet-based access to start/stop operations, view live status, check errors, and monitor progress remotely.

Price: On Request Get A Call Back

Enquire Now
Specifications
Download
Additional information

Item Code	No of Positions	Price	Qty / Enquiry
DAN.FAS.01	6 Samples	On Request

Description

Specifications:

No. of Positions	6 Samples
Sample Size	0.1 to 8 g (depending on sample type)
Temperature Control Range	35°C (Ambient) to 250°C
Temperature Accuracy / Precision	±0.5°C
Heat Source	Aluminum top
Temperature Control	PID with auto tuning facility
Extraction Thimbles	Thick nitrocellulose thimble (25 mm × 80 mm) – 1 box of 25 Nos. Highly versatile design accommodates two thimble sizes Optional macro thimbles (33 mm × 80 mm) compatible with the system
Power Consumption	2200 W
