Dan Logitech's BlackDiamond™ Pro Digital Heating Mantle with Stirrer, catalog number 1221.DNEU, has a heating capacity of 200-670W & IP 10 rating.
Icons showcasing features: 1 LED Displays heating power of 200-670W with stirring capacity upto 800RPM with knob selection for Heat/Stir, chemical resistance, ambient temperature tolerance up to 400°C, and IP Class 10 protection. It has a maximum capacity of 5000ml.
  • UL Certificate
  • CSA Certificate
  • CE Certificate
Dan Logitech's BlackDiamond™ Pro Digital Heating Mantle with Stirrer, catalog number 1221.DNEU, has a heating capacity of 200-670W & IP 10 rating.

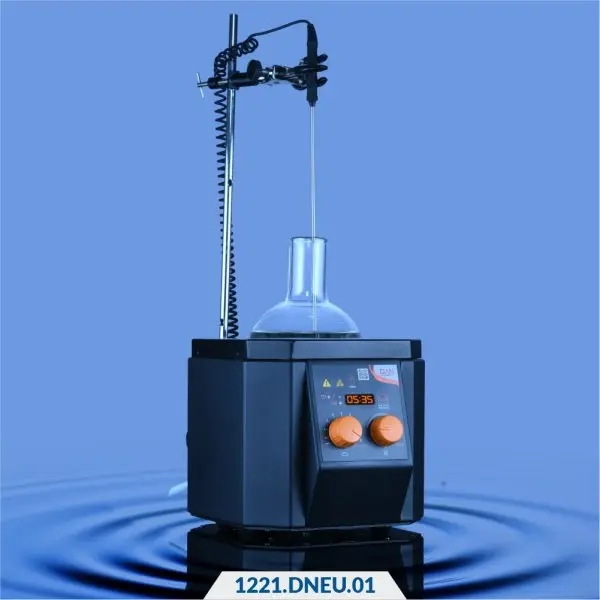

BlackDiamond™ Pro: Digital Heating Mantle with Stirrer

BlackDiamond™ Analogue Heating Mantle with Stirrer has PU-coated aluminum & stainless steel body, dual knob controls for heating and stirring, accommodates round-bottom flasks up to 5L, integrated spill collection system, operating temperature up to 400°C & stirring speed up to 800 RPM. BlackDiamond™: Analogue Heating Mantle with Stirrer
Dan Logitech's BlackDiamond™ Pro+ Digital Heating Mantle with Stirrer, catalog number 1225.DNEU, features a toggle button for temperature, an inbuilt PT 100 temperature sensor & has IP 10 rating. It has a capacity upto 5000ml. BlackDiamond™ Pro+: Digital Heating Mantle with Stirrer

Catalog no: 1221.DNEU

  • PU Coated Aluminium & Stainless Steel body
  • Dual knob operation
  • Glass fiber mantle provides uniform heating of flask
  • Hot top indicator for user safety
  • Innovative spill collect system in case of breakage of flasks upto 5 Ltr
  • For round bottom flasks as per DIN 12347
  • Inbuilt PT temperature sensor for safety

Price: On Request

Item Code Volt/Hz Cap(ml) Watts Dimension (mm)PriceQty / Enquiry
1221.DNEU.01230/50100220167x240x182 On Request
1221.DNEU.02230/50250220167x240x182 On Request
1221.DNEU.03230/50500270217x287x203 On Request
1221.DNEU.04230/501000370217x287x203 On Request
1221.DNEU.05230/502000520309x390x262 On Request
1221.DNEU.06230/503000520309x390x262 On Request
1221.DNEU.08230/505000670309x390x262 On Request
1221.DNUS.01115/60100220167x240x182 On Request
1221.DNUS.02115/60250220167x240x182 On Request
1221.DNUS.03115/60500270217x287x203 On Request
1221.DNUS.04115/601000370217x287x203 On Request
1221.DNUS.05115/602000520309x390x262 On Request
1221.DNUS.06115/603000520309x390x262 On Request
1221.DNUS.08115/605000670309x390x262 On Request

Description

Technical Specification :

Heating mantle body:Metallic, SS & Aluminium construction
Heating mantle material:Glass Fiber Yarn
Mantle capacity:Upto 5000ml
Temperature range:~400°C
Control accuracy:10%
Variable speed range:~800RPM
Weight:2.5 kgs
Permissible ambient temperature:5-40°C
Permissible relative humidity:80%
Voltage:230/115V
Frequency:50/60Hz
DIN EN 60529:IP 10

Download

DAN Logitech Instruments Catalogue

Additional information

PD

Item Code:1221.DNEU.01, Volt/Hz:230/50, Cap(ml):100, Watts:220, Dimension (mm):167x240x182, Item Code:1221.DNEU.02, Volt/Hz:230/50, Cap(ml):250, Watts:220, Dimension (mm):167x240x182, Item Code:1221.DNEU.03, Volt/Hz:230/50, Cap(ml):500, Watts:270, Dimension (mm):217x287x203, Item Code:1221.DNEU.04, Volt/Hz:230/50, Cap(ml):1000, Watts:370, Dimension (mm):217x287x203, Item Code:1221.DNEU.05, Volt/Hz:230/50, Cap(ml):2000, Watts:520, Dimension (mm):309x390x262, Item Code:1221.DNEU.06, Volt/Hz:230/50, Cap(ml):3000, Watts:520, Dimension (mm):309x390x262, Item Code:1221.DNEU.08, Volt/Hz:230/50, Cap(ml):5000, Watts:670, Dimension (mm):309x390x262, Item Code:1221.DNUS.01, Volt/Hz:115/60, Cap(ml):100, Watts:220, Dimension (mm):167x240x182, Item Code:1221.DNUS.02, Volt/Hz:115/60, Cap(ml):250, Watts:220, Dimension (mm):167x240x182, Item Code:1221.DNUS.03, Volt/Hz:115/60, Cap(ml):500, Watts:270, Dimension (mm):217x287x203, Item Code:1221.DNUS.04, Volt/Hz:115/60, Cap(ml):1000, Watts:370, Dimension (mm):217x287x203, Item Code:1221.DNUS.05, Volt/Hz:115/60, Cap(ml):2000, Watts:520, Dimension (mm):309x390x262, Item Code:1221.DNUS.06, Volt/Hz:115/60, Cap(ml):3000, Watts:520, Dimension (mm):309x390x262, Item Code:1221.DNUS.08, Volt/Hz:115/60, Cap(ml):5000, Watts:670, Dimension (mm):309x390x262

Item CodeAccessories
1500.150.01:Magnetic Stirring bar 20 mm x 8 mm (For 100 – 1000 ml)
1500.150.02:Magnetic Stirring bar 25 mm x 9 mm (For 2000 – 5000 ml)
850.800.01:SS Rod (542 mm, Ø 9 mm)
850.800.03:PT 100 probe
850.800.04:Bosshead
