Dan Logitech's BlackDiamond™ Digital Heating Mantle, catalog number 1222.DNEU, has an inbuilt PT 100 temperature sensor, an IP 10 rating and capacity upto of 5000 ml.
Icons representing product features: Heat 200–650W, heat selection dial, 1 LED display, 5000ml capacity, chemical resistant, ambient to 400°C, Celsius/Fahrenheit toggle, IP 10 protection.
  • UL Certificate
  • CSA Certificate
  • CE Certificate
Dan Logitech's BlackDiamond™ Digital Heating Mantle, catalog number 1222.DNEU, has an inbuilt PT 100 temperature sensor, an IP 10 rating and capacity upto of 5000 ml.

BlackDiamond™: Digital Heating Mantle

Dan Logitech's BlackDiamond™: Analogue Heating Mantle, catalog number 1220.DNEU, has an approximate temperature range of 400°C, IP 22 rating & capacity upto 20000 ml. BlackDiamond™: Analogue Heating Mantle

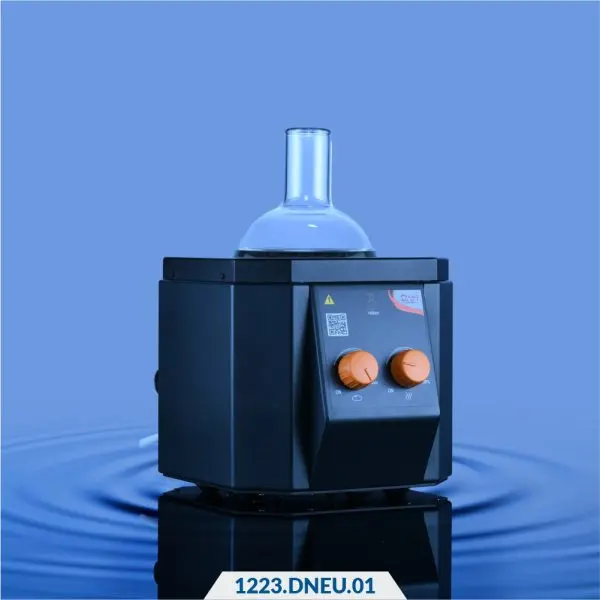

BlackDiamond™ Analogue Heating Mantle with Stirrer has PU-coated aluminum & stainless steel body, dual knob controls for heating and stirring, accommodates round-bottom flasks up to 5L, integrated spill collection system, operating temperature up to 400°C & stirring speed up to 800 RPM. BlackDiamond™: Analogue Heating Mantle with Stirrer

Catalog no: 1222.DNEU

  • PU Coated Aluminium & Stainless Steel body
  • Single knob operation
  • Glass fibre mantle provides uniform heating of flask
  • Hot top indicator for user safety
  • Compatible with other accessories like thermometers
  • Innovative spill collect system in case of breakage of flasks upto 5 Ltr
  • For round bottom flasks as per DIN 12347
  • Smart recall of previous settings for quick setup
  • Inbuilt PT temperature sensor for safety

Price: On Request

Item Code Volt/Hz Cap(ml) Watts Dimension (mm)PriceQty / Enquiry
1222.DNEU.01230/50100*200167x240x182mm On Request
1222.DNEU.02230/50250*200167x240x182mm On Request
1222.DNEU.03230/50500*250217x287x203mm On Request
1222.DNEU.04230/501000*350217x287x203mm On Request
1222.DNEU.05230/502000*500309x390x262mm On Request
1222.DNEU.06230/503000*500309x390x262mm On Request
1222.DNEU.08230/505000*650309x390x262mm On Request
1222.DNUS.01115/60100*200167x240x182mm On Request
1222.DNUS.02115/60250*200167x240x182mm On Request
1222.DNUS.03115/60500*250217x287x203mm On Request
1222.DNUS.04115/601000*350217x287x203mm On Request
1222.DNUS.05115/602000*500309x390x262mm On Request
1222.DNUS.06115/603000*500309x390x262mm On Request
1222.DNUS.08115/605000*650309x390x262mm On Request

Description

Technical Specification :

Heating mantle body:Stainless steel & Aluminum
Heating mantle material:Glass Fiber Yarn
Mantle capacity:Upto 5 Ltr
Temperature range:~400°C
Control accuracy:10%
Permissible ambient temperature:5 – 40°C
Permissible relative humidity:80%
Voltage:230/115 V
Frequency:50/60Hz
DIN EN 60529:IP 10

Download

DAN Logitech Instruments Catalogue

Additional information

PD

Item Code:1222.DNEU.01, Volt/Hz:230/50, Cap(ml):100*, Watts:200, Dimension (mm):167x240x182mm, Item Code:1222.DNEU.02, Volt/Hz:230/50, Cap(ml):250*, Watts:200, Dimension (mm):167x240x182mm, Item Code:1222.DNEU.03, Volt/Hz:230/50, Cap(ml):500*, Watts:250, Dimension (mm):217x287x203mm, Item Code:1222.DNEU.04, Volt/Hz:230/50, Cap(ml):1000*, Watts:350, Dimension (mm):217x287x203mm, Item Code:1222.DNEU.05, Volt/Hz:230/50, Cap(ml):2000*, Watts:500, Dimension (mm):309x390x262mm, Item Code:1222.DNEU.06, Volt/Hz:230/50, Cap(ml):3000*, Watts:500, Dimension (mm):309x390x262mm, Item Code:1222.DNEU.08, Volt/Hz:230/50, Cap(ml):5000*, Watts:650, Dimension (mm):309x390x262mm, Item Code:1222.DNUS.01, Volt/Hz:115/60, Cap(ml):100*, Watts:200, Dimension (mm):167x240x182mm, Item Code:1222.DNUS.02, Volt/Hz:115/60, Cap(ml):250*, Watts:200, Dimension (mm):167x240x182mm, Item Code:1222.DNUS.03, Volt/Hz:115/60, Cap(ml):500*, Watts:250, Dimension (mm):217x287x203mm, Item Code:1222.DNUS.04, Volt/Hz:115/60, Cap(ml):1000*, Watts:350, Dimension (mm):217x287x203mm, Item Code:1222.DNUS.05, Volt/Hz:115/60, Cap(ml):2000*, Watts:500, Dimension (mm):309x390x262mm, Item Code:1222.DNUS.06, Volt/Hz:115/60, Cap(ml):3000*, Watts:500, Dimension (mm):309x390x262mm, Item Code:1222.DNUS.08, Volt/Hz:115/60, Cap(ml):5000*, Watts:650, Dimension (mm):309x390x262mm

Item Code Accessories
1221.00.01:SS Rod (542mm, Ø 9mm)
850.800.03:PT 100 probe
850.800.04:Bosshead
