Dan Logitech' Soxhlet Extraction Unit with Heating Mantle
Icons display product features: Mild Steel Body, knob button for heat selection with a temperature range from ambient to 400°C, IP 10 protection, 500ml capacity, chemical resistant, heating power of 600-1500W, and IP 10 protection.
Dan Logitech' Soxhlet Extraction Unit with Heating Mantle

Soxhlet Extraction Heating Mantle

2600.DNEU.06 6 Position Heating Mantle Combined Unit
Soxhlet Extraction unit: Heating Mantle with Stirrer Soxhlet Extraction unit: Heating Mantle with Stirrer

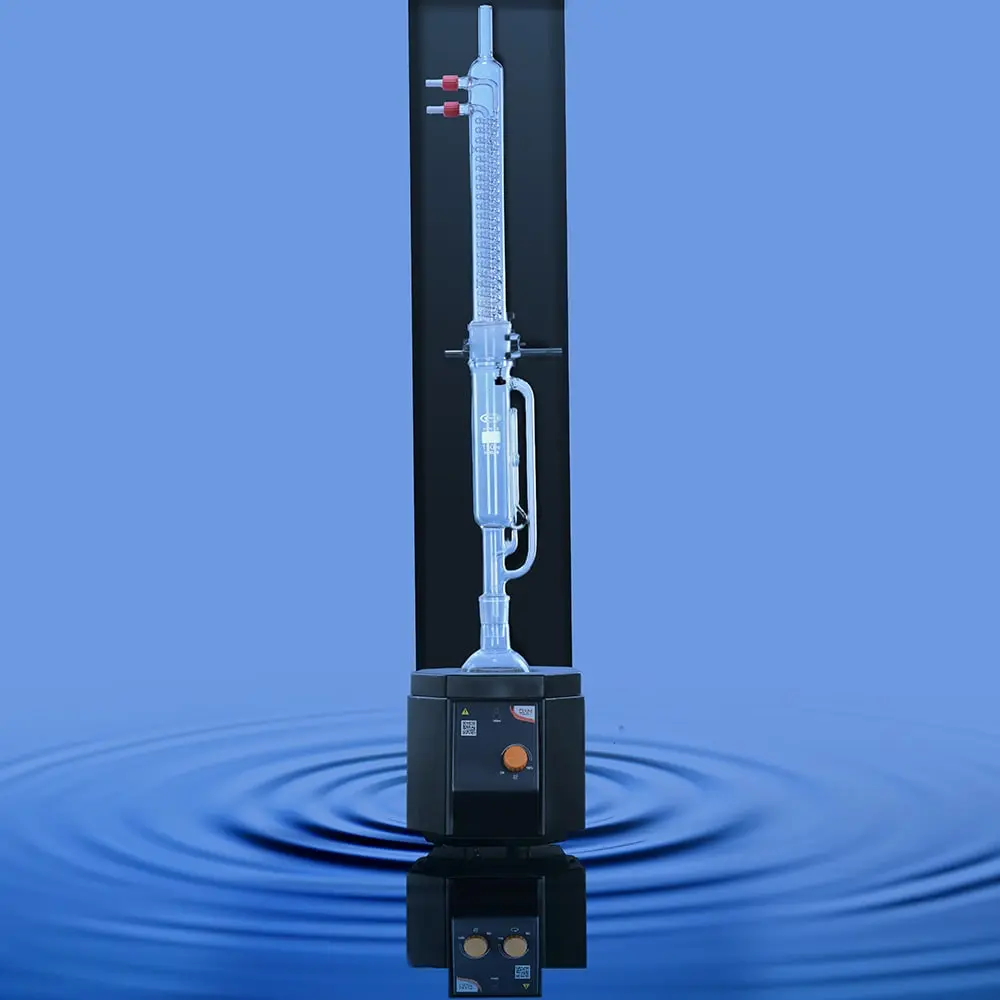

Catalog no: 1101.DNEU

Soxhlet Extraction Heating Mantle is used to heat solvents for continuous extraction of compounds from solid materials. It provides uniform heat to the boiling flask, enabling efficient solvent vaporization and recycling without open flames, ideal for organic and analytical chemistry. It supports processes like pesticide residue analysis, essential oil extraction, polymer testing, and purity assessment of raw materials.

  • PU coated mild steel body
  • Glass fibre mantle provides uniform heating of flask
  • Uniform temperature distribution across the mantle
  • Hot top indicator for user safety
  • For Round Bottomed Flasks as per DIN 12347

Price: On Request

Item Code Cap.(ml) Watts Volt/HzPriceQty / Enquiry
1101.DNEU.01100200230/50 On Request
1101.DNEU.02250200230/50 On Request
1101.DNEU.03500250230/50 On Request
1101.DNUS.01100200115/60 On Request
1101.DNUS.02250200115/60 On Request
1101.DNUS.03500250115/60 On Request

Description

Technical Specification :

Heating Mantle Body:Mild steel
Heating Mantle Material:Glass Fiber Yarn
Mantle Capacity:Upto 500 ml
Temperature Range:Approx. 400°C
Heating Control:Energy regulator
Dimensions:495 x 246 x 200mm
Permissible Ambient temperature:5 – 40°C
Weight of body:10.2Kg
Permissible relative humidity:80%
Voltage:230/115 V
Frequency:50/60Hz
DIN EN 60529:IP10

Download

DAN Logitech Instruments Catalogue

Additional information

PD

Item Code:1101.DNEU.01, Cap.(ml):100, Watts:200, Volt/Hz:230/50, Item Code:1101.DNEU.02, Cap.(ml):250, Watts:200, Volt/Hz:230/50, Item Code:1101.DNEU.03, Cap.(ml):500, Watts:250, Volt/Hz:230/50, Item Code:1101.DNUS.01, Cap.(ml):100, Watts:200, Volt/Hz:115/60, Item Code:1101.DNUS.02, Cap.(ml):250, Watts:200, Volt/Hz:115/60, Item Code:1101.DNUS.03, Cap.(ml):500, Watts:250, Volt/Hz:115/60
